Self-control study of multi-omics in identification of microenvironment characteristics in calcium oxalate kidney stones

BMC Nephrology volume 26, Article number: 104 (2025) Cite this article

Abstract

Background

Perform proteomic and metabolomic analysis on bilateral renal pelvis urine of patients with unilateral calcium oxalate kidney stones to identify the specific urinary microenvironment associated with stone formation.

Methods

Using cystoscopy-guided insertion of ureteral catheters, bilateral renal pelvis urine samples are collected. Liquid chromatography-tandem mass spectrometry (LC-MS/MS) is employed to identify differential proteins and metabolites in the urine microenvironment. Differentially expressed proteins and differential metabolites are further analyzed for their biological functions and potential metabolic pathways through Gene Ontology (GO) analysis, Kyoto Encyclopedia of Genes and Genomes (KEGG) enrichment analysis, Reactome pathway analysis and Biomolecular Interaction Network Database protein-protein interaction (PPI) network analysis.

Results

In the urine from the stone-affected side, 36 differential proteins were significantly upregulated, 4 differential proteins were downregulated, and 10 differential metabolites were significantly upregulated. Functional and pathway analyses indicate that the differentially expressed proteins are primarily involved in inflammatory pathways and complement and coagulation cascades, while the differential metabolites are mainly associated with oxidative stress.

Conclusion

The proteomic and metabolomic profiles of the urinary microenvironment in stone-affected kidneys provide a more precise reflection of the pathophysiological mechanisms involved in stone formation and development.

Peer Review reports

Introduction

Urolithiasis is among the most common urologic diagnoses globally, with substantial burden and cost on healthcare systems worldwide [1, 2]. It is estimated that 80% of kidney stones are composed of calcium oxalate and calcium phosphate, 10% of struvite, 9% of uric acid, and the remaining 1% consist of cystine or ammonium acid urate. Despite its ancient origins, the pathogenesis of urolithiasis remains incompletely understood [3]. Recent advancements in proteomic and metabolomic techniques have sparked new insights into the study of urolithiasis. These developments aim to: (1) provide effective tools for a deeper understanding of the mechanisms behind stone formation, and (2) assist in the discovery of novel biomarkers that could enhance the diagnosis, prevention, and treatment of urolithiasis [4, 5].

Urine, as a critical specimen, plays an essential role in exploring the composition and pathological and etiological factors in kidney stone disease [6, 7].Previous studies have compared proteomic and metabolomic profiles in the urine of kidney stone patients and healthy individuals to identify differential proteins (DEPs) and differential metabolites (DMs) [8,9,10,11,12]. However, numerous factors—such as diet, gender, age, medication, physiological conditions, and even the timing of urine sample collection can profoundly impact the results. These variations add complexity and potential errors to multi-omic urine studies, thereby affecting the reliability of the findings [13]. Hence, using a self-controlled method could significantly reduce research errors.

A recent large cross-sectional study in China reported that approximately 4.9% of kidney stone cases are unilateral, representing about six-sevenths of all cases [14]. Clinically, it is common to see patients with recurrent stone formation in one kidney while the other kidney remains stone-free. This intriguing clinical observation not only raises important questions but also provides a valuable research opportunity. In this context, our study collected urine from the renal pelvises of patients with unilateral renal calcium oxalate stones. By applying proteomics and metabolomics, we aimed to examine the alterations in the urine microenvironment within the renal pelvis of these patients, thus gaining insights into the pathogenesis of kidney stones. Compared with previous studies, this research adopts an autologous control method for kidney - stone patients. It aims to discover the characteristics of the urine in the stone - containing renal pelvis of patients with unilateral calcium oxalate kidney stones, and to a certain extent, reveals the differences in the protein profiles and metabolic profiles of the bilateral renal pelvis urine of patients with unilateral kidney stones.

Materials and methods

Patients

From May 2023 to July 2023, a total of eight patients (7males and 1 female) diagnosed with unilateral kidney stones via Computed Tomography (CT) scan were recruited at the Affiliated Hospital of Qingdao University. Enrollment criteria included: (1) Age range of 18 to 80 years; (2) Presence of unilateral kidney stones, with a maximum stone diameter exceeding 1 cm on CT scans; (3) Postoperative stone analysis by infrared spectroscopy confirming the presence of calcium oxalate stones. Exclusion criteria were: (1) Patients with concurrent malignant tumors, hematologic disorders, metabolic diseases, or rheumatic immune diseases; (2) Individuals with urinary diversion methods in place, such as those who have undergone total cystectomy or kidney transplantation; (3) Patients with other renal pathologies, including renal tumors, previous kidney surgeries, solitary kidneys, renal malformations (e.g., horseshoe kidney, duplicated kidney), or acute and chronic renal diseases, including end-stage renal failure; (4) Those with severe urinary tract infections or a fever exceeding 37.5℃; (5) Patients experiencing urinary tract obstructions and hydronephrosis. We analyzed the composition of the stones using infrared spectroscopy. The sensitivity of this technique dictates that only components with a content exceeding 10% will be explicitly reported. The content of calcium oxalate in the stones exceeds 90%, making it the main component. If the content of other components is below 10%, they do not meet the reporting threshold.

All samples were collected prior to any medical or surgical intervention. Written informed consent for publication was obtained from each participant before sample collection. The study was conducted following ethical approval by the Bioethics Committee of the Affiliated Hospital of Qingdao University (Ethical number QYFY WZLL 28907) and abide by the Declaration of Helsinki principles.

Sample collection and preparation

Before the lithotripsy operation, 10 ml of urine was obtained from each renal pelvis after bilateral ureteral catheterization with F5 ureteral catheter through cystoscope (Fig. 1). The urine was centrifuged at 1000 rpm for 15 min and then stored at -80℃. Then the lithotripsy continues. 300 µL of 8 M urea was added to the sample and the protease inhibitor was added at 10% of the lysate. After centrifuging at 14,100×g for 20 min, the supernatant was collected. The protein concentration was determined using Bradford method, rest was frozen to -80℃.

Fig. 1
figure 1

Schematic representing the design of proteomics and metabolomics profiling experiments

Full size image

Mass spectrometry conditions for urinary protein profile

For spectral library generation, samples were fractionated using a high pH reversed-phase fractionator. Mass spectrometry were subjected to liquid chromatography-tandem mass spectrometry (LC-MS/MS) using a 150 μm I.D. 25 cm C18 column, 1.9 μm particle size and a 80 min gradient: 8–95% solvent B (solvent A: 99.9% water, 0.1% formic acid; solvent B: 80% acetonitrile, 0.1% formic acid). The mass spectrometer was operated on a quadrupole Orbitrap mass spectrometer (Q Exactive HF-X, Thermo Fisher Scientific, Bremen, Germany) coupled to an EASY nLC 1200 ultra-high pressure system (Thermo Fisher Scientific) via a nano-electrospray ion source. Full details are provided in the Supplementary Material.

Data analysis of differentially expressed proteins (DEPs)

Gene Ontology (GO) was conducted using the interproscan-5 program against the non-redundant protein database, and the databases KEGG (Kyoto Encyclopedia of Genes and Genomes) was used to analyze the protein family and pathway. The probable interacting partners were predicted using the STRING-db server (http://string.embl.de/) based on the related species. STRING is a database of both known and predicted protein-protein interactions [15]. We utilized Cytoscape v3.10.2 to create the protein-protein interaction (PPI) diagram. We annotated the pathways of DEPs in Reactome and conducted enrichment analysis. Reactome (https://reactome.org) is an open source, peer-reviewed biomolecular pathway knowledge database [16]. Upregulated proteins were set as having a fold change (FC) ≥ 1.5, and downregulated proteins were set as having a FC ≤ 0.67. The protein quantitative values in the comparisons were statistically analyzed using the paired T-test or Wilcoxon test, with a P-value of ≤ 0.05 considered as statistically significant.

Mass spectrometry conditions for urinary metabolic profile

Mass spectrometric detection of metabolites was performed on Orbitrap Exploris 120 (Thermo Fisher Scientific, USA) with ESI ion source. Simultaneous MS1 and MS/MS (Full MS-ddMS2 mode, data-dependent MS/MS) acquisition was used. The parameters were as follows: sheath gas pressure, 40 arb; aux gas flow, 10 arb; spray voltage, 3.50 kV and − 2.50 kV for ESI(+) and ESI(-), respectively; capillary temperature, 325 ℃; MS1 range, m/z 100–1000; MS1 resolving power, 60,000 full width at half maxima (FWHM); number of data dependant scans per cycle, 4; MS/MS resolving power, 15,000 FWHM; normalized collision energy, 30%; dynamic exclusion time, automatic.

Data analysis of metabolite and differential metabolites (DMs)

Upregulated metabolites were set as having a FC ≥ 1.2, and downregulated proteins were set as having a FC ≤ 0.83. The metabolites quantitative values in the comparisons were statistically analyzed using the paired T-test or Wilcoxon test, with a P-value of ≤ 0.05 considered as statistically significant. Finally, combined with P value and FC to screen biomarker metabolites. By default, when P value < 0.05 and FC > 1.2 or FC < 0.83, we think that metabolite were considered to have significant differential expression. Differential metabolites were subjected to pathway analysis by MetaboAnalyst [17], which combines results from powerful pathway enrichment analysis with the pathway topology analysis. The identified metabolites in metabolomics were then mapped to the KEGG pathway for biological interpretation of higher-level systemic functions. The metabolites and corresponding pathways were visualized using KEGG Mapper tool.

Result

Demographic and clinical data of the studied subjects

This study included a total of 8 patients diagnosed with unilateral kidney stones. Bilateral renal pelvis urine was collected from these individuals. Detailed participant demographics and clinical characteristics are presented in Table 1. All analyzed stones primarily consisted of calcium oxalate.

Table 1 Demographic and clinical data of the studied subjects
Full size table

Proteomic analysis of urine samples

A total of 4623 proteins were identified by LC-MS/MS analysis of bilateral renal pelvis urine from the eight patients. In this cohort, 4,584 proteins were detected in the control group and 4,486 in the stone group, as shown in Fig. 2. Utilizing criteria of FC > 1.5 or < 0.67 and a P-value < 0.05, we distinguished 40 differential proteins between the groups; 36 were up-regulated, and 4 were down-regulated, as detailed in Table 2.

Fig. 2
figure 2

Number of proteins found in stone group (SG) and control group (CG)

Full size image
Table 2 List of deps in the urine of bilateral renal pelvis in patients with unilateral kidney stones
Full size table

GO analysis of deps

To explore the possible biological functions of dysregulation proteins, we used the interproscan-5 program against the non-redundant protein database. Results demonstrated that the most enriched GO terms are related to cellular component (extracellular exosome, extracellular space, extracellular region), biological process (innate immune response, antimicrobial humoral immune response, defense response to fungus) and molecular function (signaling receptor binding, heparin binding) (Fig. 3).

Fig. 3
figure 3

GO analysis of the 40 DEPs for functional classification. Green, yellow and blue bars represent biological processes, cellular components, and molecular functions, respectively. The horizontal axis represents the number of DEPs

Full size image

KEGG pathway analysis of deps

The KEGG pathway enrichment analysis was conducted to identify the functions of DEPs. The results showed that DEPs in stone group compared with the control group were involved in 274 KEGG pathways. As shown in Fig. 4, the top ten significant pathways were as follows: Complement and coagulation cascades, Neutrophil extracellular trap formation, Staphylococcus aureus infection, coronavirus disease 2019 (COVlD-19), Cholesterol metabolism, Vitamin digestion and absorption, Amoebiasis, Fructose and mannose metabolism, African trypanosomiasis, Leukocyte transendothelial migration. The complement and coagulation cascades pathway was the most representative pathway, including 8 DEPs, followed by the Neutrophil extracellular trap formation and Staphylococcus aureus infection, encompassing 6 and 5 DEPs, respectively.

Fig. 4
figure 4

KEGG pathway enrichment analysis of DEPs with the ten highest enrichment scores. The left y-axis shows the pathways. The right y-axis colored with gradient color is -log (P value) showing the enrichment score. The greater the enrichment score, the smaller the P value, signifying the significant enrichment of DEPs within the specified pathways

Full size image

Reactome pathway analysis of deps

Reactome enrichment analysis demonstrated 108 pathways in DEPs. As shown in Fig. 5, the top five significant pathways were as follows: Regulation of TLR by endogenous ligand, MyD88 deficiency (TLR2/4), IRAK4 deficiency (TLR2/4), MyD88:MAL(TIRAP) cascade initiated on plasma membrane, Common Pathway of Fibrin Clot Formation.

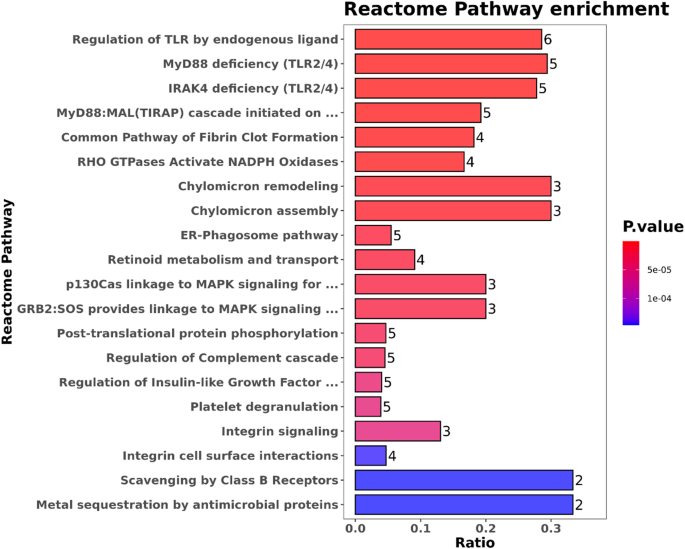

Fig. 5
figure 5

Reactome pathway enrichment analysis of DEPs with the ten highest enrichment scores. The left y-axis shows the pathways. The right y-axis colored with gradient color is P value showing the enrichment score

Full size image

Protein–protein interaction network of differentially expressed proteins

To further uncover the regulatory role of DEPs in Calculi - side renal pelvis urine and non - calculi - side renal pelvis urine, interactions between any set of two DEPs in this study were used to build a regulatory network using STRING and Cytoscape (Fig. 6). The results demonstrated that the DEPs constructed a complicated regulatory network containing 38 nodes and 92 edges. Fibrinogen alpha chain and Fibrinogen gamma chain were the most important hubs interacting with 13 proteins.

Fig. 6
figure 6

Protein-protein interaction networks of the DEPs. PPI analysis was based on fold changes of protein expression. The gray colored lines represent interactions between proteins and proteins

Full size image

Metabolomics analysis of urine samples

A total of 323 metabolites were detected, identified and quantified in 8 pairs of stone pelvis urine and healthy kidney urine. We applied a dual criterion of P < 0.05 and FC > 1.2 to detect common features in eight paired samples, leading to the identification of 10 upregulated DMs (Table 3). Urinary metabolomics indicated that Adenosine and N7-Methylguanosine were significantly up-regulated in the urine of the kidney on the calculous side, and the FC was 12.15 and 10.36, respectively. In addition, eight different metabolites were significantly upregulated in the lithic side samples, namely Methylmalonic acid, 2-Phenylacetamide, 4-Guanidinobutanoic acid, Acetaminophen, 2-Amino-3-phosphonopropionic acid, 3-Hydroxyanthranilic acid, 8-Methoxykynurenate and 3-Hydroxykynurenine.

Table 3 List of DMs in the urine of bilateral renal pelvis in patients with unilateral kidney stones
Full size table

KEGG pathway analysis of of dysregulated metabolites

The KEGG analysis shows that dysregulated metabolites were enriched in Tryptophan metabolism, GMP-PKG signaling pathway, Alcoholism, Morphine addiction (Fig. 7). The Tryptophan metabolism pathway was the most representative pathway.

Fig. 7
figure 7

KEGG pathway enrichment analysis of DMs with the ten highest enrichment scores

Full size image

Discussion

The pathogenesis of urinary calculi is complex and remains an unresolved global health issue [18]. Proteomic and metabolomic profiling of urine shows promising potential in diagnosing and treating kidney diseases. However, the majority of existing research primarily contrasts the urine composition between individuals with kidney stones and those without, without delving into comprehensive multi-omics investigations of the bilateral renal pelvis urine in patients with unilateral kidney stones. Urine is inherently unstable and varies greatly due to factors such as diet, gender, age, medications, and even the timing of urine collection. These variables introduce significant complexity and potential errors in multi-omics studies of urine, impacting the reliability of the results [4]. In our study, we collected urine directly from the renal pelvis of patients with unilateral kidney stones using ureteral catheterization. This autologous control approach allows for a more efficient and accurate evaluation of the urinary microenvironment where stone formation occurs. However, inserting the ureteral catheter inevitably exerts certain mechanical stimulation on the ureteral tissue. This kind of stimulation may trigger a stress response in the local tissue, leading to an increase in the release of some endogenous proteins or metabolites. These additional substances generated by the stimulation may mask the changes in proteins and metabolites originally present in the sample that are related to the research purpose, or interfere with their accurate detection. We have maximally removed cell debris and impurities from the samples during the pre - treatment process to ensure the stability of the urine samples. During the pre - treatment of samples, we’ve made every effort to remove cell debris and impurities from the samples, ensuring the stability of the urine samples. However, collecting urine via a ureteral catheter may still have some potential impacts that can’t be completely avoided.

By performing quantitative analysis, P value < 0.05 and FC > 1.5 as the screening criterion, a total of 40 proteins with significant differences were identified (36 up-regulated and 4 down-regulated). The most highly upregulated protein was Neutrophil defensin 1, with a mean FC of 97.85, followed by Galectin-10, Eosinophil cationic protein, Protein S100A9, and Protein S100A8, each displaying an average FC above 30. The most notably downregulated protein was Testican-1, followed by Bile salt-activated lipase.

Neutrophil defensin 1 is a key component of the innate immune system with broad-spectrum antimicrobial effects against bacteria, fungi, and other pathogens [19]. S100 calcium binding protein A8 (S100A8) and A9 (S100A9) belong to the S100 family of calciumbinding proteins, which are primarily secreted by neutrophils and plays a prominent role in the regulation of inflammatory processes and immune response [20]. Research shows that S100A8 and S100A9 are the most abundant components in the matrix of kidney stones, and their expression is significantly increased in the renal tissues of patients with urolithiasis [21]. Our study revealed that in the urinary microenvironment where kidney stones exist, the levels of S100A8 and S100A9 were significantly elevated, exceeding 30 times the levels found in urine without stones. This suggests that both S100A8 and S100A9 play a crucial role in the formation and progression of kidney stones. The eosinophil cationic protein is a small polypeptide that originates from activated eosinophil granulocytes and exhibits antibacterial activity [22]. Galactin-10 also known as Charcot-Leyden crystal protein, is highly expressed in human eosinophils and considered a biomarker of eosinophil involvement in inflammation [23]. Eosinophilic cationic proteins and neutrophil defense protein-1 were also found to be common components of the stone matrices [24, 25]. Thus, the findings indicate that inflammatory responses within the urinary microenvironment, particularly those involving neutrophils and eosinophils, play an essential role in the pathophysiology of kidney stone formation.

It is plausible to observe an elevation in blood microparticles within the urinary microenvironment in the presence of stones. Components like fibrinogen and clotting factors are likely to be increased due to the inherent damage caused by stone. This damage typically induces minor bleeding and initiates a coagulation cascade, contributing to the presence of these microparticles. We also noted that urine apolipoprotein levels were elevated in the stone group, suggesting a possible disturbance in lipid metabolism. Similarly, GO analysis revealed that most DEPs are mainly extracellular exosome and infection-related proteins. The KEGG analysis also suggested that the renal pelvis urine on the calculus side was mainly composed of coagulation cascade pathways, anti-infection-related pathways and cholesterol metabolism.

Previous research has indicated that the renal stones can stimulate tubular epithelial and immune cells to secrete inducible chemokines via TLR4 (Toll-like receptor 4) pathway and TLR2 (Toll-like receptor 2) pathway. This activation initiates a “chemokine to cytokine to chemokine” cascade, which may play a crucial role in urolithiasis pathogenesis. In concordance with these findings, our study has arrived at comparable conclusions. The data presented in Fig. 6 illustrate that that DEPs in the urine microenvironment are significantly enriched in the endogenous ligand-regulated TLR pathway.

For DMs, we investigated the potential metabolic pathways of metabolic alterations through the KEGG database and found that Tryptophan metabolism, cGMP-PKG signaling pathway, Alcoholism, Morphine addiction are involved in the formation of kidney stones. Adenosine and 7-Methylguanine were found to be significantly more than 10-fold higher in the urine collected from the calculous (stone-containing) side compared to the urine from the non-calculous side. This observation led us to hypothesize that the elevated levels of these compounds were likely due to cell death or injury. When cells are damaged or undergoing cell death, their internal components, including nucleosides, may be released into the surrounding fluid, such as urine. Furthermore, both adenosine and 7-Methylguanine are known to be involved in physiological processes such as immune response and inflammation [26, 27].

3-Hydroxyanthranilic acid, 8-Methoxykynurenate and 3-Hydroxykynurenine are related products in the kynurenine pathway of tryptophan metabolism. In the human body, kynurenate metabolites regulate biological processes including host microbiome signaling, immune cell responses, and neuronal excitability [28]. 8-Methoxykynurenate has been found to be enriched in COVID-19 patients. 3-Hydroxykynurenine and 3-Hydroxyyanthranilic acid have been shown to have pro-oxidation activities, which can induce oxidative stress through the production of free radicals [29]. Additionally, the kynurenine pathway of tryptophan metabolism can produce Nicotinamide adenine dinucleotide (NAD+), which is a coenzyme involved in many cellular oxidation-reduction reactions [30].

Methylmalonic acid is an important intermediate in carbohydrate and amino acid metabolism in the human body. Studies have suggested that it may act as an endogenous neurotoxin, causing dilation of renal tubules, swelling of mitochondrial tubular epithelia and disorganization of cristae, which in turn leads to renal tubular damage [31, 32]. 4-Guanidinobutyric acid, an alkaloid included in guanidino compounds, has stimulatory effects on monocytes and granulocytes, and oxidative burst activity has been observed in granulocytes [33]. Levillain, O et al. believe that the specific accumulation of toxic guanidino compounds in the injured kidney reflects disturbances in renal metabolism and function [34]. Hydroquinone and Acetaminophen are the major metabolite of aniline, which is an important intermediate in the dye industry. Acetaminophen is considered a well-known and widely used analgesic and antipyretic drug. In some cases, it can cause nephrotoxicity through oxidative stress. Research suggests that acetaminophen may cause renal tubular damage via pathways such as the enhancement of TNF-alpha levels, elevation in nitric oxide production, involvement in oxidative-nitrosative stress, and reduction in Na+/K+-ATPase activity [35,36,37]. This kind of tubular damage may lead to increased adhesiveness of calcium oxalate crystals, thereby promoting the aggregation of stones [38]. Researches have shown that Hydroquinone can trigger pyroptosis and endoplasmic reticulum stress through Ahr-regulated human lymphocyte oxidative stress [39]. Furthermore, it has been proved that it has a unique antibacterial mechanism against Staphylococcus aureus [40].

We have found that the majority of DMs are associated with oxidative stress, which has also been confirmed by previous studies [41]. This may suggest that not only is there an increase in oxidative stress products in the kidneys of patients with stones, but even the urinary microenvironment of the two kidneys (stone-bearing and non-stone-bearing) within the same individual can exhibit significant differences.

This study has several limitations. First, it didn’t explore the DEPs and DMs in the urine of healthy individuals and kidney stone patients. Second, the sample size is small. The determination of unilateral kidney stones relied only on patients’ CT scan images and medical histories, unable to guarantee the contralateral kidney is stone - free. Also, infrared spectral analysis of kidney stones can’t ensure the calcium oxalate stone component in the sample exceeds 99%. Lack of follow - up research on postoperative patients makes it difficult to clarify whether these differences emerged after kidney stone formation or existed beforehand. Thus, it’s hard to tell whether inflammation and oxidative stress cause kidney stone formation or are the results.

Conclusion

Our study found that even in patients with unilateral renal stones, significant differences exist in the proteins and metabolites in the renal pelvis urine of both kidneys. These DEPs and DMs primarily play a crucial role in the development and progression of renal stones through inflammatory responses and oxidative stress.

Data availability

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request.
